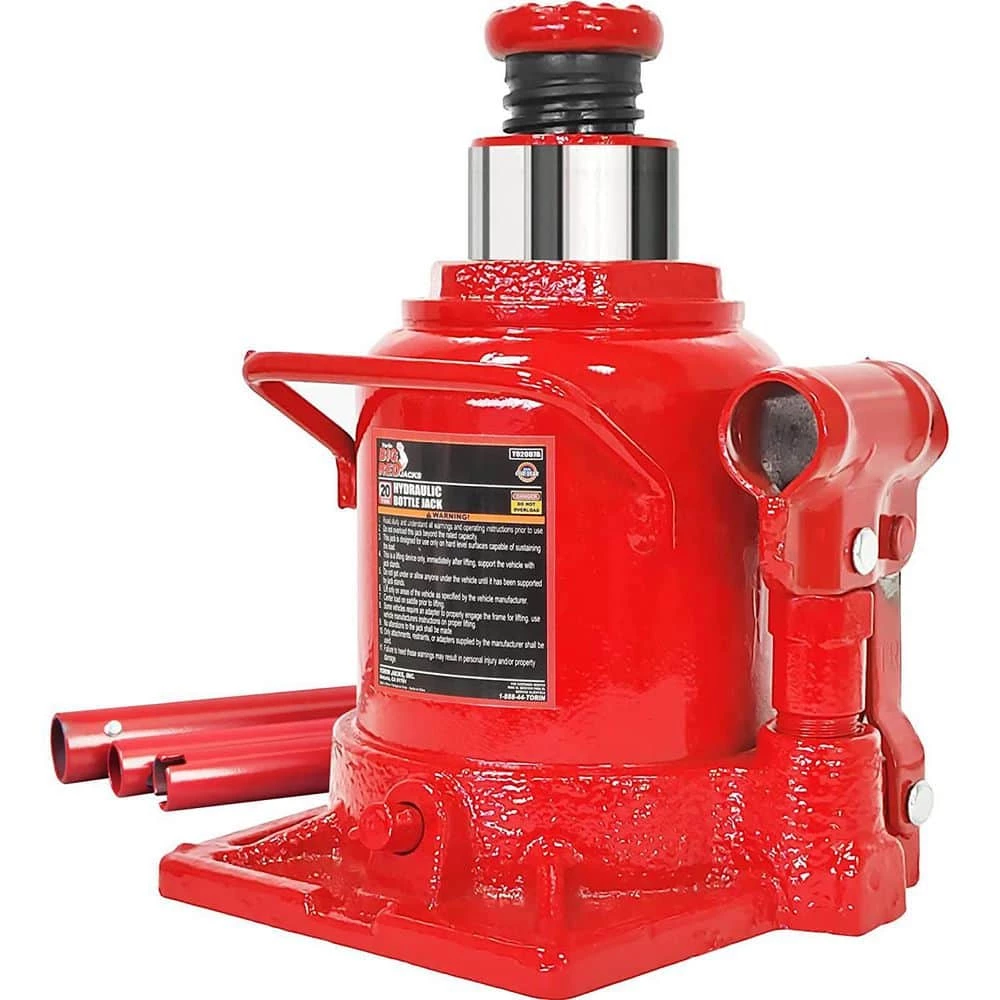

Big Red 20-Ton Low-Profile Bottle Jack
Original price was: $47.19.$30.20Current price is: $30.20.
Made from heavy duty steel to ensure long lasting functionality
Can raise up to 40,000 lbs. 11 in.
Large base promotes safety by adding increased stability
- 7 Days of Hassle-Free Returns
- Shop with confidence, enjoy free returns.
- fast shipping
- Quick responses, top-notch service.
The Torin BIG RED T92007A hydraulic bottle jack is designed for residential and commercial use. It is industrial welded and engineered using a drop forged alloyed steel construction that is ideal for quality and durability. The inner/outer welded structure and steel construction will keep your bottle jack leak-free and give it an overall stronger build. The fully welded structure is designed for hard-hitting commercial use, making large loads easy to lift. A wide, rugged base adds stability and strength. The lifting range is 6-5/8″ to 10-15/16″ with a 20 ton (40,000 lb) capacity. It features a high-quality glide-action pressure pump designed to lift with minimal muscle and effort and has an integrated built-in oil-bypass and overload valve that protects the hydraulic system from extending beyond its travel limits. Hydraulics are powered with a high-quality oil, which offers better corrosion resistance and high/low temperature flexibility, allowing the unit to operate at temperatures between -13 degrees Fahrenheit and 140 degrees Fahrenheit. Piston ram utilizes a Y-style polyurethane sealing ring with backup ring, preventing the load from falling slowly. This powerful bottle jack is ideal for lifting cars, trucks, SUVs, farm vehicles, heavy-duty machinery and industrial equipment. It can also be used for military applications, agricultural and industrial environments where the equipment receives heavier abuse. Includes a limited 1 year manufacturer warranty

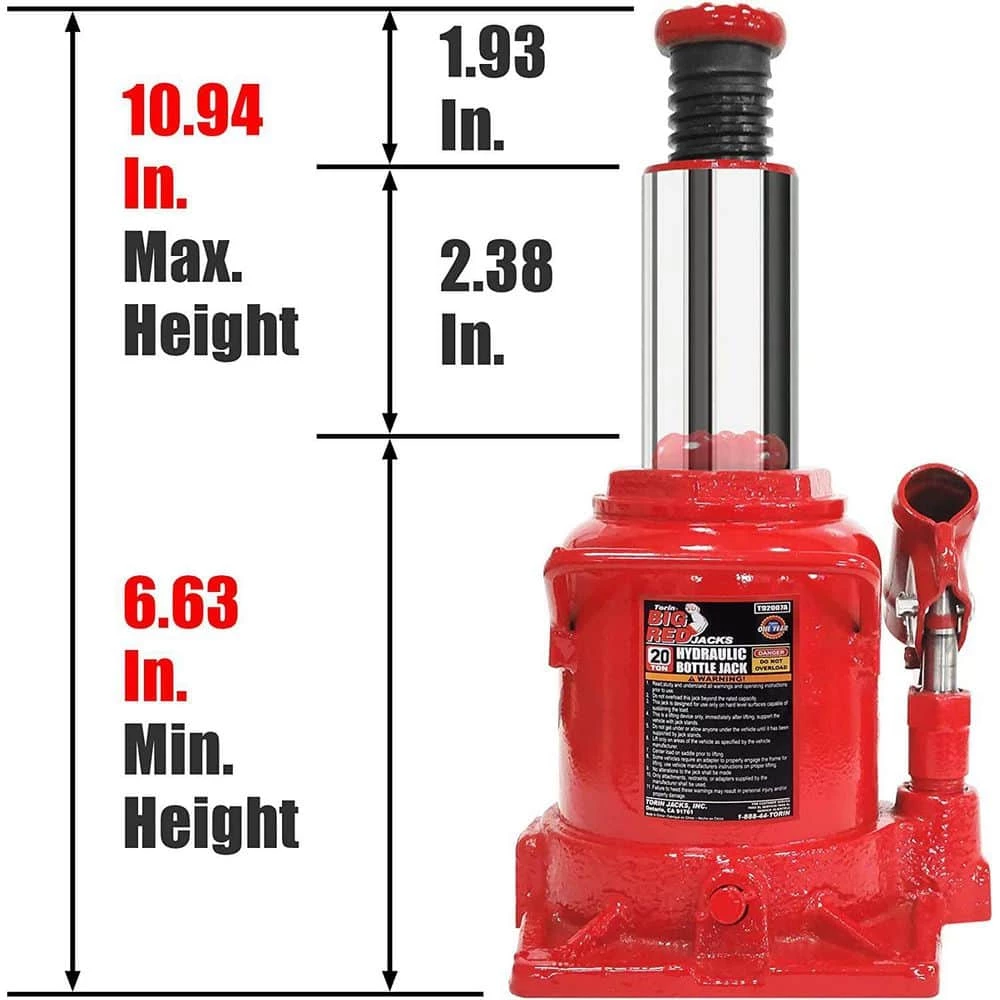

- Features a lifting range of 6-5/8″ to 10-15/16″ with a 20 ton (40,000 lb) capacity; Adjustable screw top extension adds versatility
- Hydraulic bottle jack designed for residential and commercial use; Serrated, heat treated saddle provides generous lifting area and secure grip
- Engineered using a drop forged alloyed steel construction for quality and durability; Inner/outer welded structure delivers leak-free performance
- Glide-action pressure pump is designed to lift with minimal effort; Integrated built-in oil-bypass and overload valve that protects the hydraulic system from extending beyond limits
- Includes limited 1 year manufacturer warranty
| Features | Rust Resistant |
|---|---|
| Weight Capacity (lb.) | 40000 lb |
| Product Height (in.) | 6.63 in |
| Product Depth (in.) | 6.18 in |
| Handle Length (in.) | 17.05 in |
| Collapsed height (in.) | 6.63 |
| Base Width (in.) | 6.1 |
| Base Length (in.) | 6.18 |
| Manufacturer Warranty | Limited 1 Year Manufacturer Warranty |
| Saddle Diameter (in.) | 1.77 |
| General Part Type | Bottle Jack |
| Returnable | 90-Day |
| Product Weight (lb.) | 19.84 lb |
| Minimum Lift Height (in.) | 6.63 |
| Mechanism type | Hydraulic |
| Maximum Lift Height (in.) | 10.94 in |
| Material | Steel |
| Included | Handle |
| Product Width (in.) | 6.1 in |
